4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill

Product Categories
Wuxi Wuye Heavy Industry Machinery Co.,LTD
Contact Now

4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill

Brand Name : wuye

Model Number : 2-stand, 3-stand, 4-stand, 5-stand

Certification : ISO2000

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets/month

Delivery Time : 150-180 days

Packaging Details : export stand suitable for sea transportation and lifting.

Contact Now

4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill

Features and applications.

The continuous rolling mill is several mills laid out in the line, the strips pass the mills continuously.. Compare with single stand mill, contnuous rolling mill has high-efficiency, good quality and high automatic degree, so that it suits for production with high yield. We can provide with two-stand cold rolling mill, three-stand cold rolling mill, four-stand cold rolling mill and five-stand cold rolling mill, which equipped with hydraulic screw-down AGC and automatic thickness gauge, and applied with the technology of endless rolling and automatic welding.

Components

Pay-off reel→welding platform→looper→continuous rolling mill sets→frame No.1→　　　　　　　　　
　　　　　　　 ↓
　　　　　hydraulic shear →welder
Thickness gauge→frame No.2→frame No.3→frame No.4→thickness gauge→hydraulic shear→tension reel

Technical parameters

Parameter Mill Three-stand Four-stand Five-stand
Material thickness 2.0～3.0mm 2.0～4.0mm 2.75～4.0mm
Product thickness 0.6～1.2mm 0.5～1.2mm 0.5～1.2mm
Max rolling speed 240m/min 300m/min 300m/min

4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill

4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill


Product Tags:

continuous rolling mill



steel rolling mill


Wholesale 4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill from china suppliers

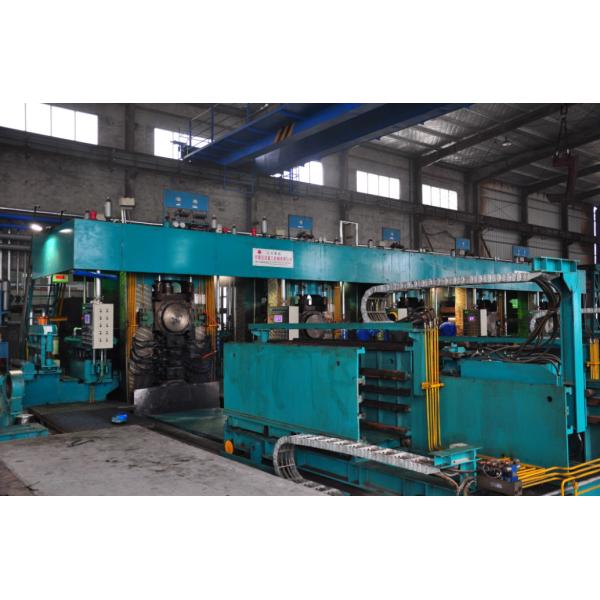

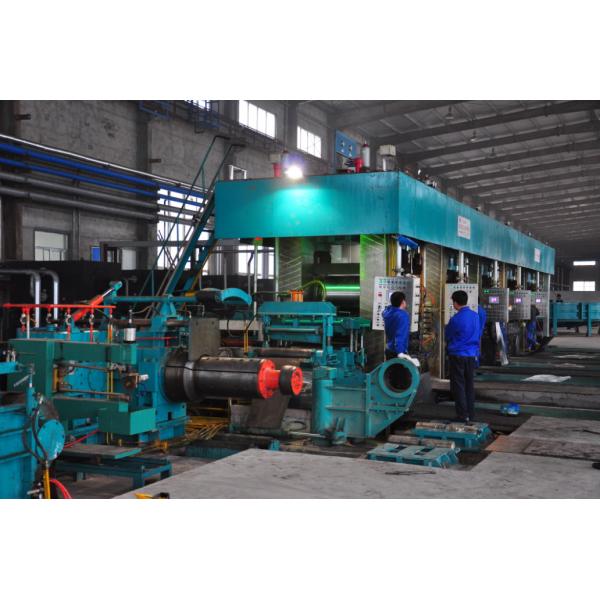

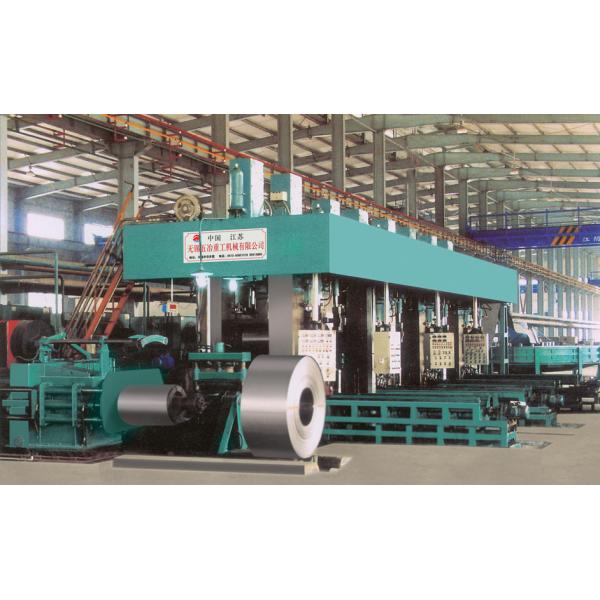

4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill Images
